Click on image to see greater detail
Click on image to see greater detail

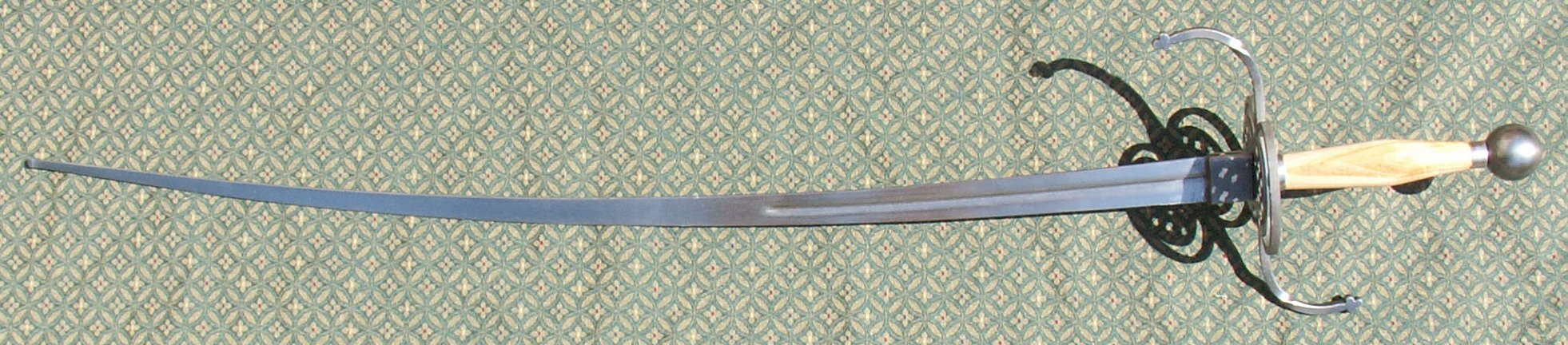

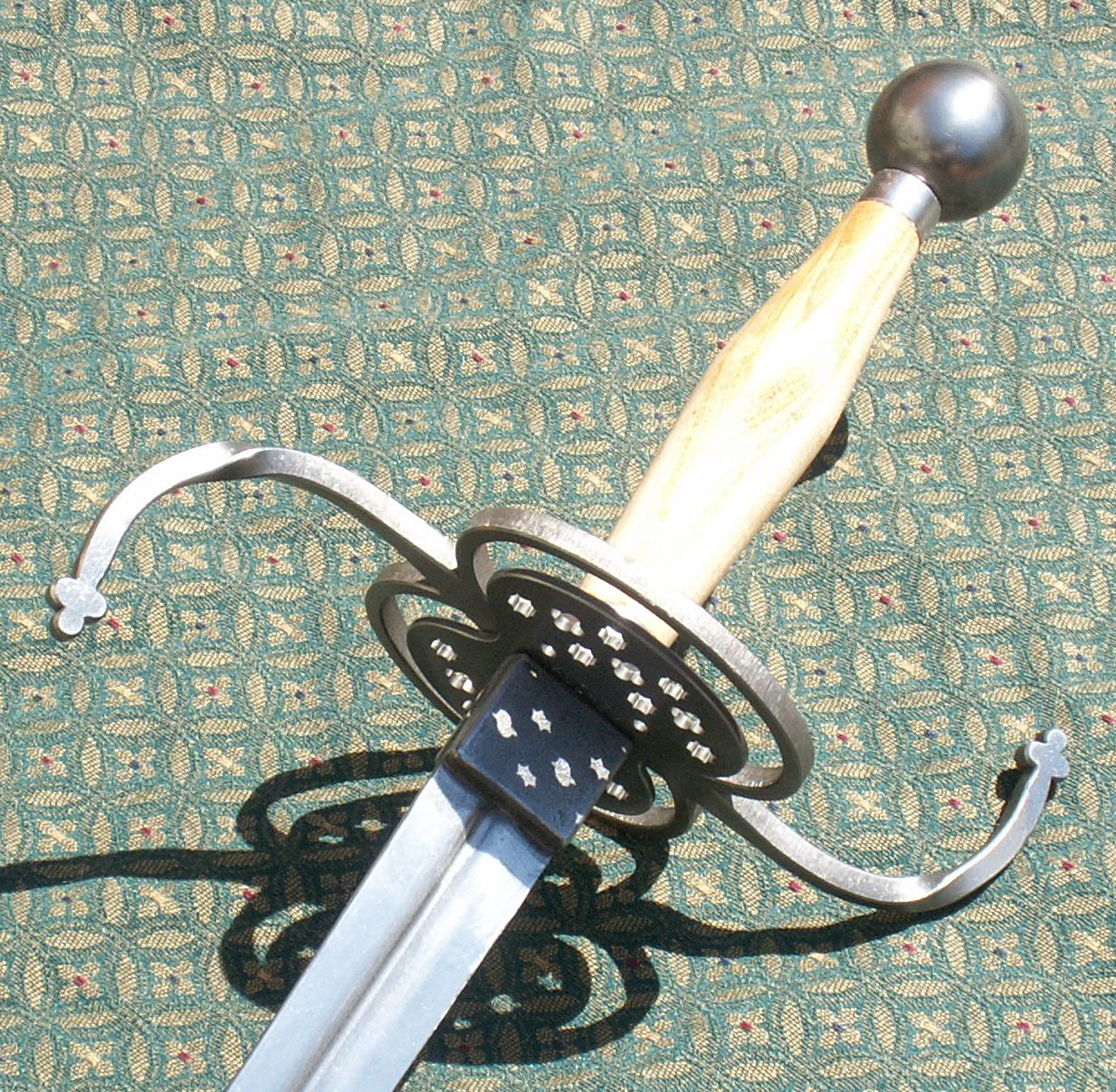

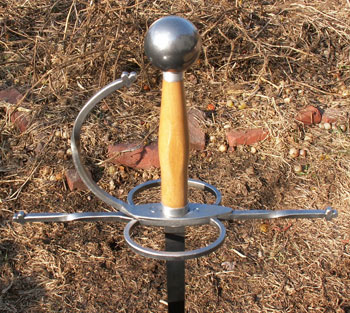

The above are photos of our simplest cruciform hilt which we refer to as our "Aguirre The Wrath Of God" model. According to "The Archaeology Of Weapons" by Ewart Oakshott, plate 20 top right, this design dates from 1420 to 1450. Our hilt consists of an 11 3/4 inch long cross guard, and two open (unfilled) side rings. The side rings measures 3 inches long by 2 inches wide. An optional perforated plate may be added at a cost of an additional $10 to cover the side rings as seen on the example to the right. An optional knuckle guard, as depicted on the example to the left, is now available which may be ordered separately for an additional $15. The wooden grip is from 5 1/2 to 6 inches long and the pommel, on the example to the left, is our large 1 3/4 inch diameter ball. Guards may be ordered straight (I), serpentine (S), or curved forward (C shaped). The Aguirre hilt may also be mounted on a dagger blade. For dagger blade specifications, follow the Dagger Blades & Hilts link.



Prices are as follows:
  • Aguirre hilts alone (any finish, or guard shape) $95 US ($90 foreign) 1.08pounds = .49kgs
    To US To Canada Other Countries
  • Hilt with Alchem rectangular rod tang up tp 37" light schlager/rapier blade (any finish, or guard shape) $165 US ($160 foreign) 1.91pounds = .87kgs
    To US
  • Hilt with Alchem rectangular rod tang up to 37" light broadsword blade (any finish, or guard shape) $165 US ($160 foreign) 1.91pounds = .87kgs
    To US
  • Hilt with up to 40" flat tang blade (any finish, or guard shape) $165 US ($160 foreign) 3.08pounds = 1.40kgs
    To US
  • Hilt with up to 40" flat tang flamberge blade (any finish, or guard shape) $215 US ($210 foreign) 3.08pounds = 1.40kgs
    To US
  • Hilt with up to 43" Alchem rectangular rod tang blade (any finish, or guard shape) $175 US ($170 foreign) 3.08pounds = 1.40kgs
    To US
  • Add extra curve to your blade $10 US
  • Optional knuckle guard $15 US
  • Add a perforated plate $10 US
If you are ordering a hilt and blade to be shipped to an address outside the US, send us an email at alchem@en.com with the hilt type, blade length, and destination, and we'll calculate the shipping cost.
When ordering, be sure to specify (PayPal provides for comments to seller)
  • finish ('B'lack or 'G'ray),
  • shape for 11 3/4" guards ('I' straight, 'C' curved, 'S' serpentine).
  • Please note: If not specified, the defaults are gray, straight.
If your order includes a blade, be sure to also specify
  • blade length.
  • straight or slightly curved.
  • Please note: If not specified, the default is 36 inches and straight.
If you are ordering a complete rapier or hilt and prefer the 12 ounce pommel (at no extra charge), click this button:
If you are ordering a complete rapier or hilt and prefer the 16 ounce 2 inch pommel (at a charge of an additional $4), click this button:
